Epson WorkForce DS-860 Duplex Document Scanner
Epson

Epson WorkForce DS-860 Duplex Document Scanner

  • Size: A4, A5, A6, B5 & More
  • Duplex Scanning: One pass duplex A4 colour scanner
  • Document Feeder: 80-page Automatic
  • Duty Cycle: Up to 6000 sheets per day
  • Warranty: 1-Year warranty
$999



Epson WorkForce DS-860 Duplex Document Scanner



Epson WorkForce DS-860 Document scanner



EPSON WorkForce
DS-860 Document Scanner


Epson WorkForce DS-860 Document scanner

Producing world-class performance for fast paced businesses, the ultra-fast WorkForce DS-860 document scanner is designed for situations where speed is critical and dependability is paramount. Blazing through scans up to 65ppm1, it features auto paper size detection and dynamic skew correction to prevent paper jams and avoid downtime. A robust and reliable workhorse, the DS-860 includes an 80-page ADF and 6000 page daily duty cycle. TWAIN and ISIS compatibility make it ideal for use with existing professional document management systems, while advanced image adjustments make getting sharp scans simple. The DS-860 even scans directly to popular cloud services.




Key Features & Benefits



Ultra fast document management: Solutions by providing up to 65ppm/130ipm scanning speed, including both sides in one pass.1
Advanced paper feed technology: With dynamic skew correction to prevent misfeeds and paper jams. Also featuring auto paper size detection and double feed detection.
80 page Automatic Document Feeder: With a daily duty cycle of up to 6000 sheets.
Optional Network adaptor: For multiple users in busy office environments.
Compatible with existing office software: Including TWAIN and ISIS drivers.
Advanced colour and image adjustments: Made simple such as Variable Colour enhance, Colour Dropout and other innovative features.
Scan directly to the cloud: With scanning to SharePoint, Evernote, Google Drive, SugarSync available.
Scan and edit documents: With the ability to save documents as searchable PDF files3 with the OCR software included.
Versatile paper handling: With the ability to scan folded pages up to A3 size, rigid ID cards, stacks of business cards and single sheets.
Save on office space: As this compact scanner will fit into any environment.








Optional Network
Interface Unit

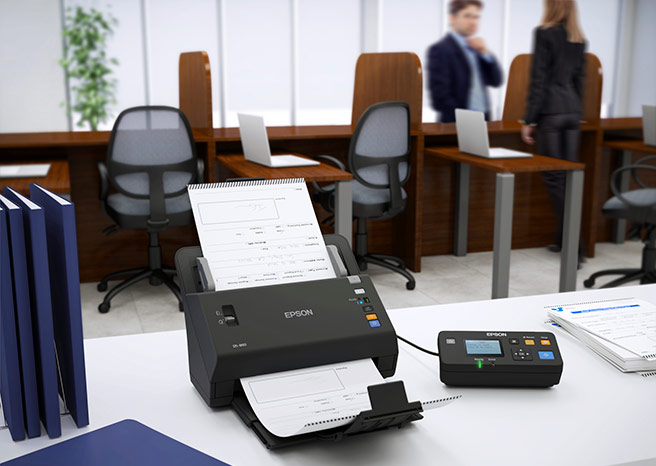

The Epson WorkForce DS-860 has an optional Network Interface Unit available, meaning that the scanner can be shared by multiple users with a minimum of effort and cost.






Versatile Paper Handling

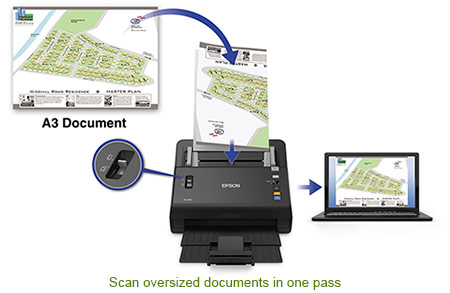

Tackle any task with little to no downtime thanks to features such as dynamic skew correction, and multi-roller paper feed. The DS-860 easily accommodates oversized folded pages, single sheets, stacks of business cards and rigid ID cards. Also, by using the page separation lever, A3 documents can be folded in half(so they are A4 size) and be digitally stitched together as an A3 document. This versatility makes the DS-860 perfect for office applications.







Specifications



Key Specs:
• Scanner Type: Sheet Feed, One Pass Duplex A4 Colour Scanner
• Optical Resolution: 600 X 600 Dpi
• Output Resolution: 75 To 1200 Dpi
• Effective Pixels: 5,100 X 21,600 Pixels
• Colour Scan Mode (Output Bit Depth): 48-bit Internal / 24-bit External
• Greyscale Scan Mode (Output Bit Depth): 16-bit Internal / 8-bit External
• Monochrome: 1-bit
• Photoelectric Device: 1 Line CMOS Contact Image Sensor
• Light Source: Three Colour RGB LED

Maximum Effective Scan Area:
• Document Size: Plastic Card (In Portrait Scanning Only), A4, A5, A6, B5, Business Card, Letter, Legal And Custom Sizes (Can Set For Up To 5 Different Paper Types), A3 Size Supported By Digital Stitching

• Max. Size: 216 X 356 Mm (Horizontal X Vertical)

• Min. Size: 52 X 50.8 Mm (Horizontal X Vertical)
• Input Tray Capacity: 80 Sheets (Based On 75g/m2 Paper)
• Paper Weight: 40-210 G/m2


Scanning Speed:
(A4/letter Size):
• 65 Ppm/130 Ipm: 200 Dpi Black & White, colour, Grey
• 65 Ppm/130 Ipm: 300 dpi Black & White, colour, Grey
• 50 Ppm/100 Ipm: 400 dpi Black & White, Grey
• 14 Ppm/28 Ipm: 400 dpi colour
• 33 Ppm/66 Ipm: 600 dpi Black & White, Grey
• 8 Ppm/16 Ipm: 600 dpi colour

Functions:
• Document Enhancement Tools:
• 30 user-definable scan job settings
• Double-Feed Detection
• Text Enhancement
• Auto Area Segmentation
• Colour Enhance
• Colour Dropout
• Skip Blank Page
• Searchable PDF (Windows only)
• Encrypted PDF

Bundled Software:
• Epson® Scan
• Document Capture Pro (Windows only)

Supported Platforms:
USB2.0 High-Speed:
• Microsoft® Windows® 2000 Professional/ XP (Home Edition/ Professional/ Professional X64)/ Windows Vista®
• Please Note - This product will NOT support Mac OS®

Interface
• USB2.0 (Type-B standard connector) x 1++

Environmental Conditions:
• Temperature: 5°c To 35°c (Operating)
• Humidity: 10% To 80% Without Condensation (Operating)

Electrical Specifications:
• Rated Voltage: AC 100-240V

Frequency
• AC 100-240V
• Frequency 50 To 60Hz (Rated)
• 47 To 63Hz (Input)

Power Consumption:
• Operating: 18W
• Ready mode: 7W
• Sleep mode: 1.6W
• Power Off: 0.4W

Power Consumption:
• Width X Depth X Height: 300mm X 166mm X 158mm
• Weight: Approx. 4.0kg

What's In The Box:
• Epson WorkForce DS-560, Setup Sheet, Warranty / Registration Card, USB Cable, Software CD-ROM, AC Adapter & Cable

Estimated Availability

10+ units in stock

*Our stock is a mix of Supplier and HT Stock.
All shipments are subject to our standard delivery policy.

Tax

Ex. GST:$908.18
GST Amount:$90.82

Details

Tech Code:BB919
Manufacturer Number:B11B222501

Images may differ slightly from actual product


  • Size: A4, A5, A6, B5 & More
  • Duplex Scanning: One pass duplex A4 colour scanner
  • Document Feeder: 80-page Automatic
  • Duty Cycle: Up to 6000 sheets per day
  • Warranty: 1-Year warranty

Device Type
Document scanner - desktop

Interface Type
USB 2.0

Scan Element Type
Contact Image Sensor (CIS)

Light Source
RGB LED array

Max Supported Document Size
Legal (216 x 356 mm)

Input Type
Colour

Grayscale / Color Depth
16-bit (64K grey levels) / 48-bit colour

Grayscale / Color Depth (External)
8-bit (256 grey levels) / 24-bit (16.7 million colours)

Optical Resolution
600 dpi x 600 dpi

Interpolated Resolution
1200 dpi x 1200 dpi

Max Document Scan Speed
65 ppm (mono) / 65 ppm (colour)

Max Document Size
216 mm x 356 mm

Automatic Duplexing
Yes

Supported Document Type
Plain paper, plastic card

Document Feeder Type
Automatic

Document Storage Capacity
80 sheets

Power
AC 120/230 V (50 - 60 Hz)

System Requirements
Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows Vista

Microsoft Certification
Compatible with Windows 7

Dimensions (WxDxH)
30 cm x 16.6 cm x 15.8 cm

Weight
4 kg

Environmental Standards
ENERGY STAR Qualified

Manufacturer Warranty
1 year warranty



General
Type
Document scanner - desktop

Interface Type
USB 2.0

Max Supported Document Size
Legal (216 x 356 mm)

Scanner
Input Type
Colour

Grayscale Depth
16-bit (64K grey levels)

Grayscale Depth (External)
8-bit (256 grey levels)

Colour Depth
48-bit colour

Colour Depth (External)
24-bit (16.7 million colours)

Optical Resolution
600 dpi x 600 dpi

Interpolated Resolution
1200 dpi x 1200 dpi

Scan Mode
Single-pass

Automatic Duplexing
Yes

Scan Element Type
Contact Image Sensor (CIS)

Bulb / Light Source Type
RGB LED array

Max Document Scan Speed B/W
65 ppm

Max Document Scan Speed Colour
65 ppm

Scanner Speed Details
65 ppm - black & white - A4 - 300 dpi
130 ipm - duplex - black & white - A4 - 300 dpi
65 ppm - colour - A4 - 300 dpi
130 ipm - duplex - colour - A4 - 300 dpi
65 ppm - black & white - A4 - 200 dpi
130 ipm - duplex - black & white - A4 - 200 dpi
65 ppm - colour - A4 - 200 dpi
130 ipm - duplex - colour - A4 - 200 dpi
9 ppm - colour - A4 - 400 dpi
18 ipm - duplex - colour - A4 - 400 dpi
30 ppm - black & white - A4 - 600 dpi
60 ipm - duplex - black & white - A4 - 600 dpi
7 ppm - colour - A4 - 600 dpi
14 ipm - duplex - colour - A4 - 600 dpi

Scanner Features
EPSON ReadyScan LED Technology

Media Handling
Max Document Size
216 mm x 356 mm

Supported Document Type
Plain paper, plastic card

Document Feeder Type
Automatic

Document Storage Capacity
80 sheets

Expansion / Connectivity
Interfaces
USB 2.0 - Type B

Miscellaneous
Cables Included
1 x USB cable

Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.

Environmental Standards
ENERGY STAR Certified
Yes

Power
Voltage Required
AC 120/230 V (50 - 60 Hz)

Power Consumption Operational (Standby)
18 Watt

Power Consumption Stand by
7 Watt

Power Consumption Sleep
1.6 Watt

Software / System Requirements
Software Included
Drivers & Utilities, EPSON Scan, EPSON Document Capture Pro

OS Required
Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows Vista

Dimensions & Weight
Width
30 cm

Depth
16.6 cm

Height
15.8 cm

Weight
4 kg

Manufacturer Warranty
Service & Support
Limited warranty - 1 year - carry-in

Environmental Parameters
Min Operating Temperature
5 °C

Max Operating Temperature
35 °C

Humidity Range Operating
10 - 80% (non-condensing)
